Seamless Steel Pipe

Seamless pipe, as the name suggests, is a pipe without a seam or a weld-joint. Seamless Steel Pipe is made from a solid round steel ‘billet’ which is heated and pushed or pulled over a form until the steel is shaped into a hollow pipe.

Commodity name： Seamless Steel Pipe

Category:

Seamless Pipe

lydia@runguosteel.com

+8619963558653

Related Products

Keyword:

Seamless Steel Pipe

PRODUCT DESCRIPTION

Product introduction

This specification covers wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures. The pipe shall be made by the seamless or welding process with the addition of no filler metal in the welding operation. All seamless and welded pipes shall be treated to control their micro-structure. Tensile tests, impact tests, hydro-static tests, and nondestructive electric tests shall be made in accordance to specified requirements.
1. Scope
1.1 This specification covers nominal (average) wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures. Several grades of ferric steel are included as listed in Table 1. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse affect on low-temperature impact properties.
1.2 Supplementary Requirement S1 of an optional nature is provided. This shall apply only when specified by the purchaser.
1.3 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in non-conformance with the specification. The inch-pound units shall apply unless the "M" designation of this specification is specified in the order.

Technical data

Seamless Steel Pipe Chemical Composition and Mechanical Properties

This data is a brief summary of the referenced standard. It is informational only and not an official part of the standard; the full text of the standard itself must be referred to for its use and application. ASTM does not give any warranty express or implied or make any representation that the contents of this abstract are accurate, complete or up to date.

Standard	Grade	Chemical Composition (%)					Mechanical Properties
ASTM A53	Grade	C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
ASTM A106	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM A179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM A192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	≥331	≥207
	B	0.28	-	1.20	0.030	0.030	≥414	≥241
	X42	0.28	-	1.30	0.030	0.030	≥414	≥290
	X46	0.28	-	1.40	0.030	0.030	≥434	≥317
	X52	0.28	-	1.40	0.030	0.030	≥455	≥359
	X56	0.28	-	1.40	0.030	0.030	≥490	≥386
	X60	0.28	-	1.40	0.030	0.030	≥517	≥448
	X65	0.28	-	1.40	0.030	0.030	≥531	≥448
	X70	0.28	-	1.40	0.030	0.030	≥565	≥483
API 5L PSL2	B	0.24	-	1.20	0.025	0.015	≥414	≥241
	X42	0.24	-	1.30	0.025	0.015	≥414	≥290
	X46	0.24	-	1.40	0.025	0.015	≥434	≥317
	X52	0.24	-	1.40	0.025	0.015	≥455	≥359
	X56	0.24	-	1.40	0.025	0.015	≥490	≥386
	X60	0.24	-	1.40	0.025	0.015	≥517	≥414
	X65	0.24	-	1.40	0.025	0.015	≥531	≥448
	X70	0.24	-	1.40	0.025	0.015	≥565	≥483
	X80	0.24	-	1.40	0.025	0.015	≥621	≥552

Carbon Steel Seamless Pipe Chemical Composition and Mechanical Properties

Standard

Grade

Chemical Composition

Mechanical Properties

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

GB/T8163

0.07-0.14

0.17-0.37

0.35-0.65

≤0.035

≤0.15

≤0.25

335-457

≥205

≥24

0.17-0.24

0.17-0.37

0.35-0.65

≤0.035

≤0.25

410-550

≥245

≥20

Q345

0.12-0.20

0.20-0.55

1.20-1.60

≤0.045

490-665

≥325

≥21

Carbon Steel Seamless Pipe Tolerance

Pipe types	Pipe Szie(mm)		Tolerances
Hot rolled	OD	All	±1% (min ±0.50mm)
Hot rolled	WT	All	+15%, -12.5%
Cold drawn	OD	6～10	±0.20mm
		10～30	±0.40mm
		30～50	±0.45mm
		>50	±1%
	WT	≤1	±0.15mm
		>1～3	+15% -10%
		>3	+12.5% -10%

Seamless Steel Pipe End

Plain End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Plain End (Square Cut)	Wall Thickness over 0.5 inch, including SCH XXS
Beveled End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Couplings	Outside Diameter equal or less than 2''
Thread Protection	Outside Diameter over 4 inch

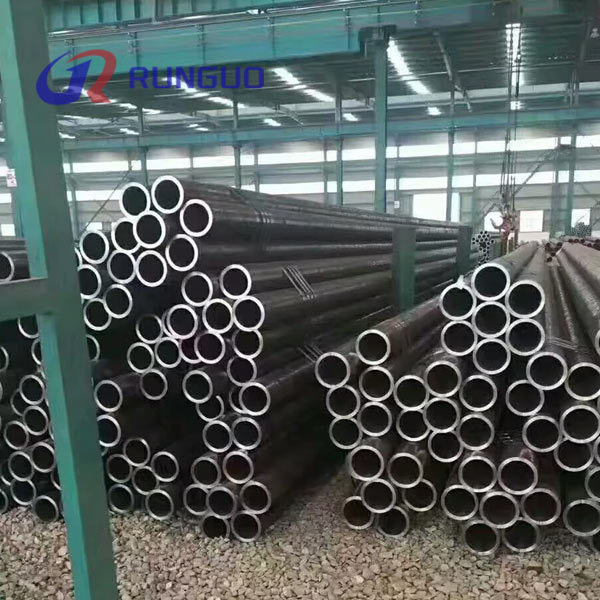

Warehouse Storage

The company has a professional sales team, can always provide customers with professional advice, provide personalized custom processing services to meet the different needs of customers, professional and enthusiastic sales service has won wide praise from customers, and has established a strong business relationship with customers.

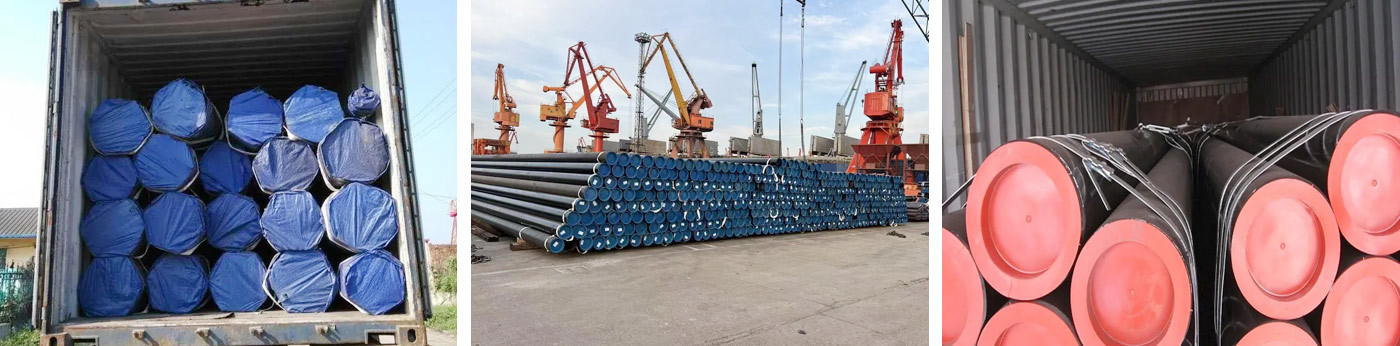

Packing and shipping

Now the main business scope of our company covers various kinds of Stainless steel and carbon steel materials , such as hot rolled / cold rolled stainless steel coils / sheet , Seamless / welded stainless steel pipe ( tube ).

Customer conversation

We provide the products consultation , purchase plan suggestion , logistic service ( including the shipment service , custom works ,etc ).

Application field

The predecessor of Shandong Province Reliance Steel Material Co ., Ltd . founded in 2012, it belongs to Industry Bureau of Shandong Province . Aims to promote the development of Stainless / Carbon steel industry of .

Honor and qualification

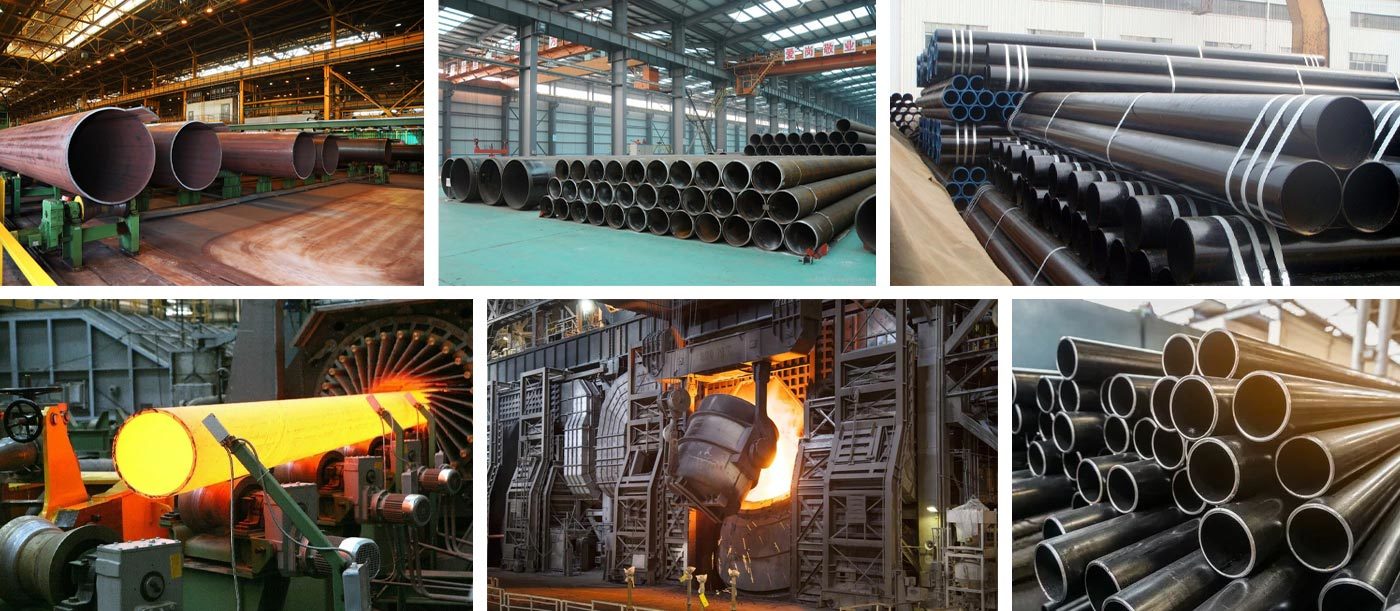

FACTORY APPEARANCE

Shandong Dingnuo Metal Products Co., Ltd.

Advanced Equipment

The company has advanced production equipment and superb technical power.

Sufficient Inventory

We have multiple production lines and a large amount of product inventory.

Fast Delivery

We safely send the product to your designated place.

Strict Quality Inspection

The company has ISO9001 certification, EU CE10219 system certification, and Swiss SGS quality standard certification.

PARTNER

We also look forward to cooperating with customers and friends from various countries sincerely, mutually beneficial, win -win, and seek common development, creating glory together!

HONOR

High -quality steel, preferential price.

The company adheres to the following business principles: to win the market with high quality products, to attract customers with competitive prices, and to win reputation with excellent service.

QUALITY ASSURANCE

We have strict quality control and factory inspection procedures, and accept third-party testing.

PREFERENTIAL PRICE

Our prices are very affordable and the quality will definitely satisfy you.

FAST DELIVERY

We have a large stock, professional packaging and logistics team to ensure on-time delivery.

RICH EXPERIENCE

We have more than 10 years of experience in the steel industry and can provide you with professional services.

FAQ

Q1: Are you a manufacturer?

A: Yes , we are a manufacturer, We have own factory, which is located in LiaoCheng,China. We have a leading power in producing and exporting galvanized steel coil,galvalume steel coil,ppgi etc. We promise that we are what you are looking for.

Q2:Can we visit your factory ?

A:Warmly welcome once we have your schedule we will pick you up .

Q3: Do you have quality control?

A: Yes, we have gained BV, SGS authentication.

Q4: Can you arrange the shipment?

A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q5: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
